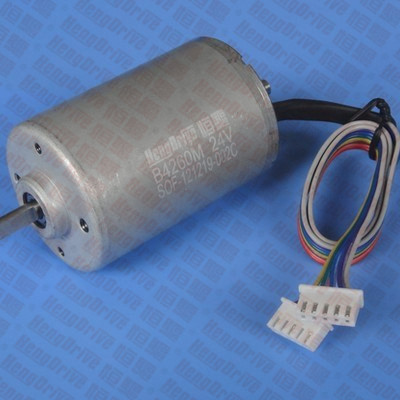

B4260M 无刷电机

    B4260M

    Output Power 输出功率: 10W~40W

    Weight 重量: 290g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Automobile Parts: Pump, Fan, Actuator, Parking Heater

    汽车部件：泵，风机，致动器，驻车加热器

    Home Application: White Goods, Small Appliance, Fanner, Coffee Machine,

    Meat Grinder

    家用电器：白色家电，小家电，无风叶电风扇，有风叶风扇，咖啡机，绞肉机

    Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

    Centrifugal Machine

    医疗器械：医疗泵，手术器械，搅拌机，离心机

    Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

    商业设备：打印机，复印机，投影机，ATM机，售卖机

    Power Tools: Screwdriver, Drill, Air Compressor

    电动工具：电动螺丝批，电钻，气体压缩机

    Personal Care: Hair Dryer, Massager, Vibrator   个人护理：风筒，按摩器，震动器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B4260M-S01

    8-26

    12

    4590

    0.28

    45.00

    3500

    1.88

    16.54

    190.2

    3.0

    B4260M-S02

    8-26

    24

    4260

    0.26

    95.06

    3270

    1.85

    32.58

    409.2

    3.0

    B4260M-S03

    8-26

    24

    4046

    0.24

    60.04

    3342

    1.21

    21.01

    344.6

    2.5

    B4260M-S04

    85-265 ac

    120 ac

    9700

    0.19

    19.816

    7930

    0.368

    16.45

    96.5

    1.0

    B4260M-S05

    85-265 ac

    220 ac

    10760

    0.12

    24.525

    8500

    0.247

    21.85

    116.8

    1.0

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征：双转向，信号功能，锁定保护，无级调速，低噪音，低电磁干扰，超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

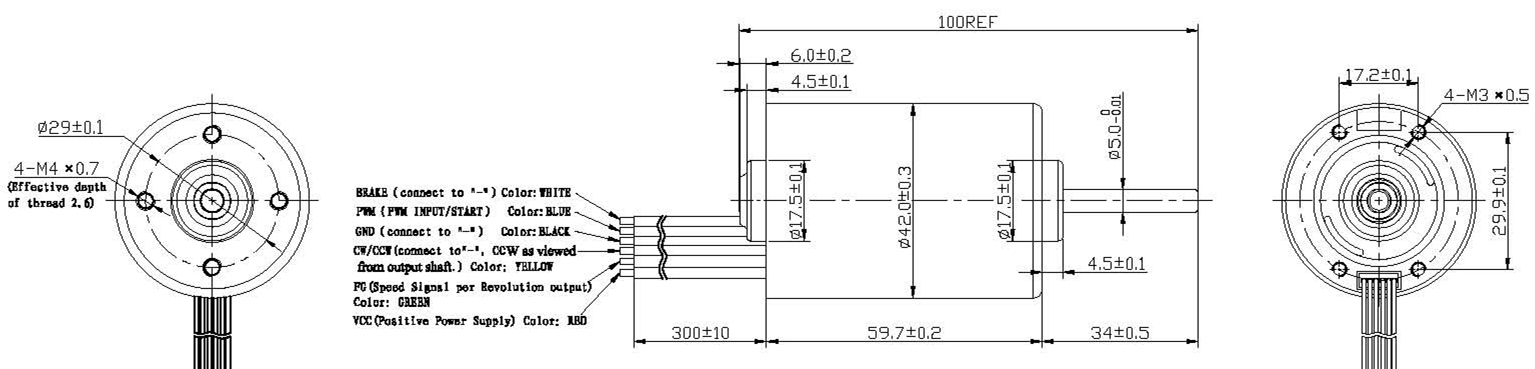

    Outline Drawing 外形图: Usable machine screw length 6.0mm max from motor mounting surface       Unit: Millimeter

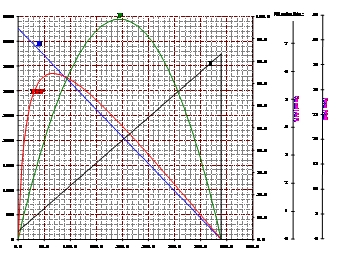

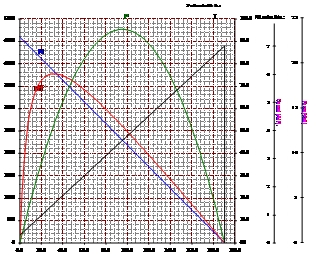

    Performance Curve 性能曲线:

    B4260M-S01                 12V

    B4260M-S02                 24V
