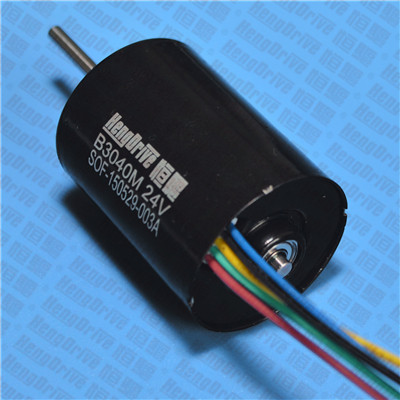

B3040M

Output Power 输出功率: 1W~10W

Weight 重量: 95g (Approx.)

Brushless DC Motor-Typical Application 直流无刷电机-典型应用Home Application: Water pumps, Air pumps,Small Appliance, Fanner, Electric Curtain

家用电器：水泵，气泵，小家电，风扇，电动窗帘，水泵，气泵Medical Apparatus: Medical Pump, Infusion pump, Surgery Tools, Medical Stirrer, centrifugal Machine     医疗器械：医疗泵，输液泵，手术器械，搅拌机，离心机Industry Equipment: Electric Valve, Actuator, Micro Pumps                              工业设备：阀门，致动器，水泵，气泵，液泵，油泵Business Equipment: Printer, Copier, Projector, ATM, Vending Machine  商业设备：打印机，复印机，投影机，ATM机，售卖机

Model

型号

电压 Voltage(V)

No Load 空载

Rated Load 额定负载

Stall 堵转

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B3040M-S01

5-12

6

1992

0.14

15

1464

0.71

2.30

56.54

0.9

B3040M-S02

8-26

12

3698

0.10

10

3165

0.44

3.32

69.43

2.8

B3040M-S03

8-26

12

3986

0.14

30

2830

1.24

8.89

103.4

2.8

B3040M-S04

8-26

24

3615

0.06

10

3139

0.23

3.29

76.02

2.4

B3040M-S05

8-26

24

5475

0.09

30

4384

0.84

13.77

150.6

2.4

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

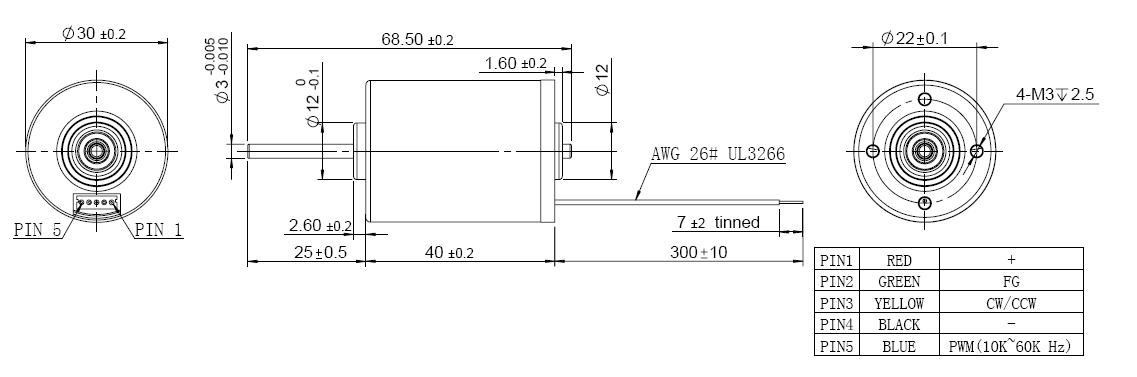

Usable machine screw length 3.0mm max. from motor mounting surface

Unit: Millimeter

B3040M-S02                12V

     B3040M-S04              24V
