B3630M直流无刷电机

    B3630M

    Output Power 输出功率: 1W~16W

    Weight 重量: 110g (Approx.)

    Brushless DC Motor-Typical Application 无刷直流电机-典型应用

    Home Application: Electric door, Electric Window, Electric Curtain,

    Electric Awning

    家用电器：电动门，电动窗，电动窗帘，电动遮阳棚

    Industry Facility: Transmission Equipment, Gear System, Actuator

    工业设备：传动机械，齿轮系统，致动器

    Electronic Equipment: Electric Valve, Small Switcher, Lighting Adjustor,

    Small Percussion Drill

    电控设备：电动阀门，小型转换器，灯光调节器，电动扳手

    Business Equipment: Electric Gate, Banking Facility, ATM, Vending Machine

    商业设备：电动门禁，银行设施，ATM机，售卖机

    Personal Care: Massager   个人护理：按摩器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B3630M-S01

    5.8-12

    6

    2940

    0.39

    10.00

    2270

    0.91

    2.38

    44.05

    2.5

    B3630M-S02

    8-26

    12

    5200

    0.27

    14.72

    4260

    0.90

    6.56

    81.30

    2.5

    B3630M-S03

    8-26

    24

    6970

    0.20

    19.62

    5640

    0.76

    11.58

    102.51

    2.5

    B3630M-S04

    8-26

    24

    15755

    0.39

    20.00

    13213

    1.59

    27.67

    123.9

    3.5

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs

    特征：双转向，信号功能，锁定保护，无级调速，低噪音，低电磁干扰，超长寿命10000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

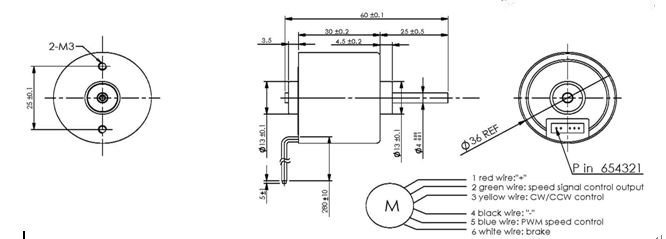

    Outline Drawing 外形图:  Usable machine screw length 3.0mm max from motor mounting surface      Unit: Millimeter

    Performance Curve 性能曲线:

    B3630M-S02                 12V

      B3630M-S03               24V
