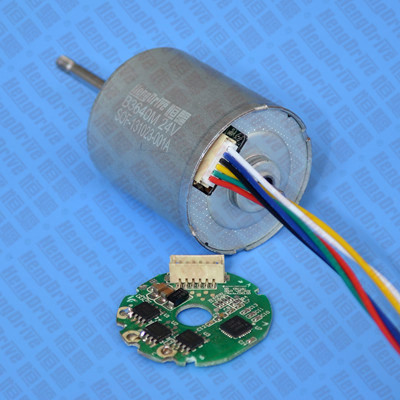

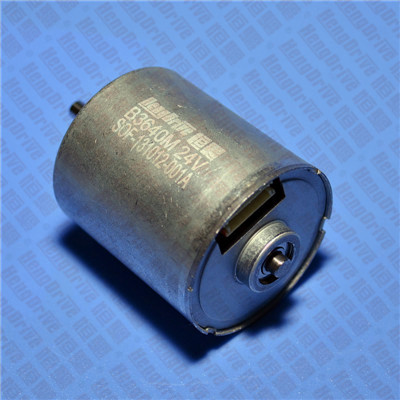

B3640M

Output Power 输出功率: 2W~50W

Weight 重量: 145g (Approx.)

Brushless DC Motor-Typical Application 直流无刷电机-典型应用

Automotive Parts: Pump, Fan    汽车部件：泵、风机

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine,

Milk Tea Machine

家用电器：白色家电，小家电，风扇，咖啡机，奶茶机

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

Centrifugal Machine

医疗器械：医疗泵，手术器械，搅拌器，离心机

Industry Equipment: Electric Valve, Actuator, Micro Pump

工业设备：阀门，致动器，微型泵

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

商业设备：打印机，复印机，投影机，ATM机，售卖机

Personal Care: Hair Dryer, Electric Shaver, Massager

个人护理：风筒，电动须刨，按摩器

Model

型号

电压 Voltage(V)

No Load 空载

Rated Load 额定负载

Stall 堵转

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B3640M-S01

8-26

12

2360

0.14

25.5

1830

0.69

4.9

174.10

2.5

B3640M-S02

8-26

12

7930

0.56

19.62

6800

1.89

13.97

83.22

3.0

B3640M-S03

8-26

24

6140

0.26

23.5

5190

0.85

12.8

229.05

2.5

B3640M-S04

8-26

24

16020

0.36

9.81

14940

0.98

15.35

90.68

2.5

B3640M-S05

8-26

24

27685

0.47

19.62

22191

2.88

45.59

98.89

5.0

B3640M-S06

12-40

36

20686

0.29

18

16726

1.30

31.53

94.02

2.5

B3640M-S07

8-26

24

7046

0.28

56.00

5156

1.80

30.23

208.79

2.5

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

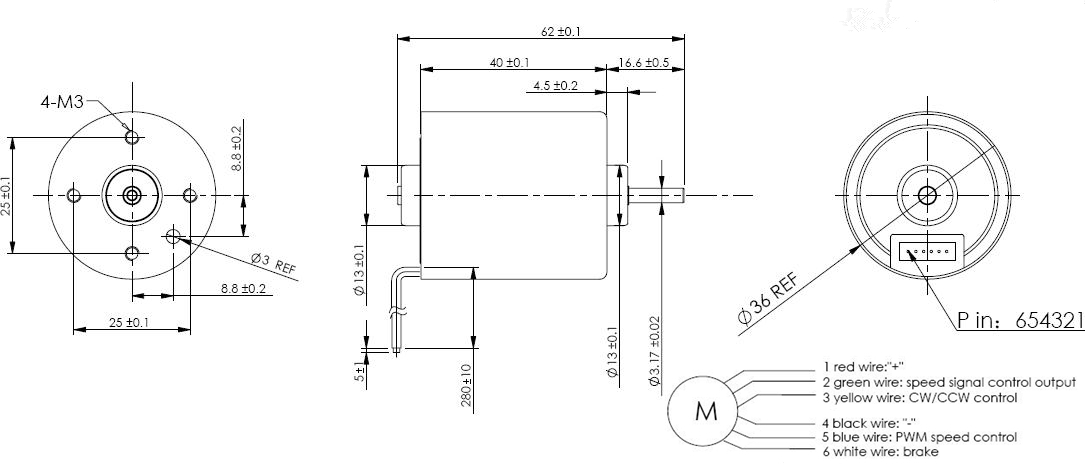

Usable machine screw length 4.0mm max. from motor mounting surface

Unit: Millimeter

B3640M-S01                12V

      B3640M-S05           24V
