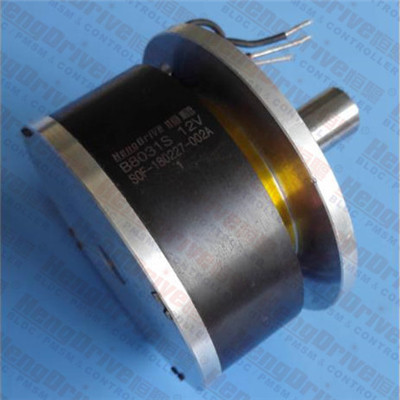

B8031S

Outer Rotor

Output Power 输出功率: 20W~100W

Weight 重量: 500g (Approx.)

外转子

3-Phase Brushless DC Motor-Typical Application (In development)

三相无刷直流电机-典型应用（研发中）

Automotive Parts: Auto Pumps, Auto Air Conditioning Compressor

汽车部件：汽车泵，汽车空调压缩机

Medical Apparatus: Medical Pump, Electric Joint  医疗器械：医疗泵，电动关节

Business Equipment: Electrical Actuator, Robot Joint Drive

商业设备：电动致动器，机器人关节

Model

型号

Voltage(V) 电压

No Load 空载

Rated Load 额定负载

Stall堵转

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

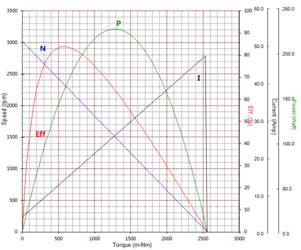

B8031S-S01

5-14

12

3018

4.05

306

2657

9.34

85.14

2556

20

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。
